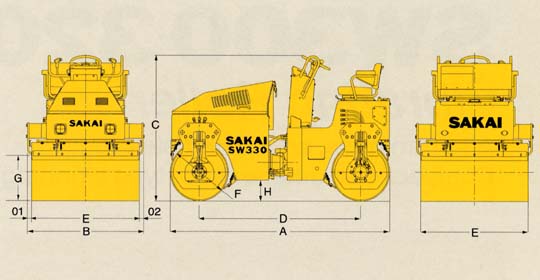

모델 : SW300/320/330
mm (in)
| |
A |
B |
C |
D |
E |
F |
G |
H |
01 |
02 |
| SW300 |
2650(104") |
1130(44") |
1750(69") |
1950(77") |
1000(39") |
700(28") |
550(21.5") |
250(10") |
65(2.6") |
65(2.6") |
| SW320 |
2650(104") |
1330(52") |
1750(69") |
1950(77") |
1200(47") |
700(28") |
550(21.5") |
250(10") |
65(2.6") |
65(2.6") |
| SW330 |
2650(104") |
1430(56") |
1750(69") |
1950(77") |
1300(51") |
700(28") |
550(21.5") |
250(10") |
65(2.6") |
65(2.6") |
| 모델 |
SW300 |
SW320 |
SW330 |
| 무게 |
| Gross kg (lbs) |
2,750 (5,965) |
2,870 (6,330) |
2,950 (6,505) |
| |
Load on front axle |
1,305 (2,880) |
1,390 (3,065) |
1,430 (3,155) |
| |
Load on rear axle |
1,400 (3,085) |
1,480 (3,265) |
1,520 (3,350) |
| DIMENSIONS |
See skech |
SPEEDS
(Forward & Reverse) |
0 - 12 km/h (0 - 7.5 mile/h) |
| VIBRATING POWER |
Each Front & Rear |
| Frequency |
66.7Hz (4,000vpm) |
| Centrifugal force kN/kgf(lbs) |
27.5/2,800 (6,175) |
31.4/3,200 (7,055) |
31.4/3,200(7,055) |
MIN.TURNING RADIUS
(Outer) |
3.7 m (146 in) |
3.8 m (150 in) |
3.8 m (150 in) |
| GRADABILITY |
44% |
41% |
39% |
| ENGINE |
| Model |
KUBOTA "D1703" Diesel Engine |
| Type |
Water-cooled, 4-cycle |
| Displacement |
1,647 L (100.5cu.in) |
| Rated output |
25.4 kW {34.5 PS}(34HP) / 2,800 min-1 |
| Battery |
12V |
| POWER LINE |
| Transmission |
Hydrostatic transmission |
| VIBRATING SYSTEM |
| Transmission |
Hydrostatic transmission |
| Vibrator |
Eccentric shaft type |
| BRAKE SYSTEM |
| Service brake |
Hydrostatic |
| Parking brake |
Mechanical, multi-wet disc type (S.AHR) |
| STEERING SYSTEM |
Hydraulic type (Articulated type) |
| DRUMS |
| Front roll |
Vibrate & Drive |
| Rear roll |
Vibrate & Drive |
| SPRINKLER SYSTEM |
Pressurized type (F & R) |
| FLUID CAPACITY |
| Fuel tank |
50 L (13.2 gal) |
| Sprinkler tank |
180 L (48 gal) |
